Convertitore SCALER AV RGB SCART=>HDMI 62783

DELOCK HDMI OUT 720p / 1080p, PAL / NTSC

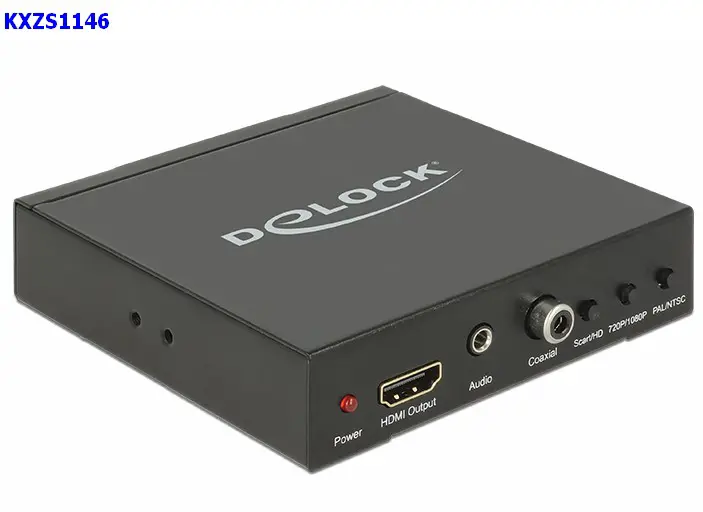

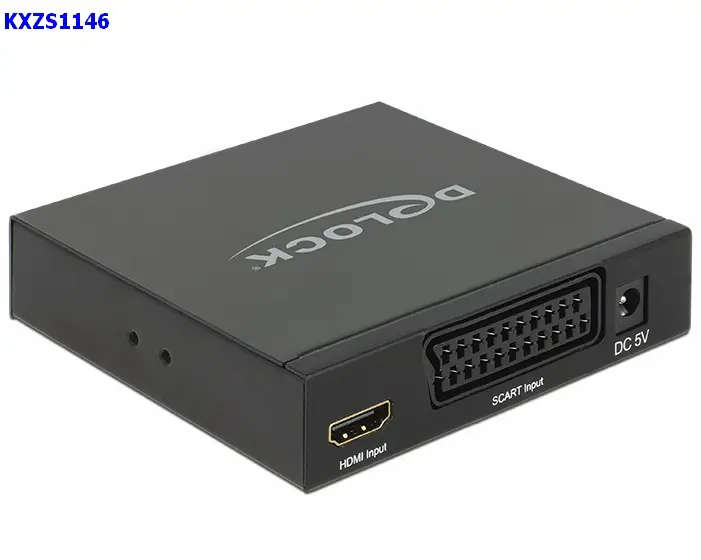

The Delock A/V converter converts an analogue SCART video and audio signal to a digital HDMI signal. Thereby e.g. a VCR or game console can be connected to an HDMI monitor or Full HD TV. In addition, an HDMI input is present, so that the converter can be used as a switch. Both inputs can be scaled via the integrated video processor to an HDMI output signal of 720p or 1080p with 50 or 60 Hz. The audio signal is simultaneously available at the HDMI output, as a digital S/PDIF signal and as analogue signal at the stereo jack.

Specification
• Connector:
Input:
1 x SCART female (RGB or Composite)
1 x HDMI-A 19 pin female
1 x DC 5 V power connector
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female
1 x Coaxial female S/PDIF
• Input switchable between SCART / HDMI
• Output switchable between 720p / 1080p, PAL / NTSC
• Resolution (SCART input) PAL / NTSC-M / NTSC 4.43 / SECAM / PAL-M / PAL-N
• Resolution (HDMI output) 1280 x 720 or 1920 x 1080 @ 50 or 60 Hz
• Supports stereo audio
• Dimensions (LxWxH): ca. 102 x 101 x 25 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.18 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm

System requirements
• Monitor or TV with HDMI connector
• Connection cables

Package content
• Converter SCART / HDMI > HDMI
• External power supply
• User manual
