cod. STOW3202ED
1Gs/s 40Ms 8" I2C-SPI- RS232-CAN DECODER

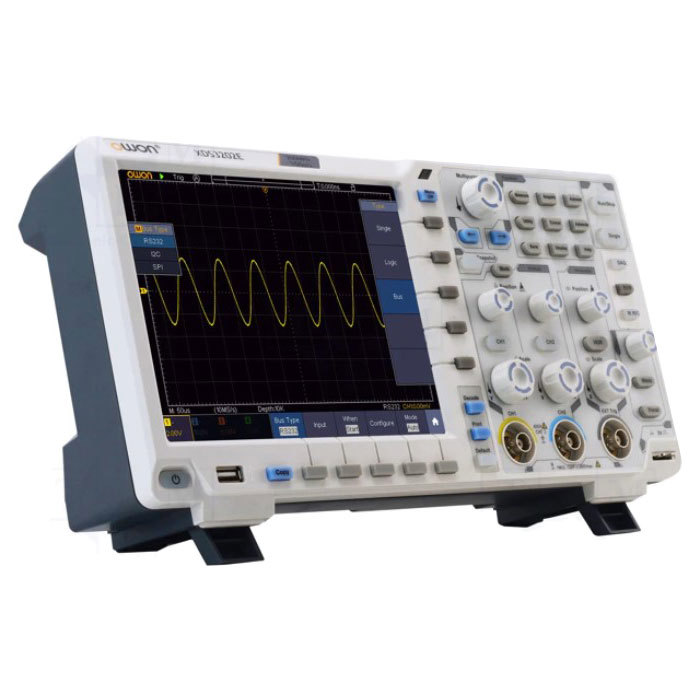

OWON XDS Series n-in-1 Digital Oscilloscope
Super Performance
+ 8-bit, 12-bit or 14-bit high resolution ADC, restoring the waveform detail fully
+ 40M record length, max 75,000 wfms/s waveform refresh rate
+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div
+ multi- trigger, and bus decoding function
+ SCPI, and LabVIEW supported
Creative New Look
+ ultra-thin body-design, less space accommodation
+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
+ 8 inch 800 x 600 high resolution LCD
12 / 14-bits ADC and original magnifier function
XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25µV/div.
Bus Decoding: I2C, SPI, RS232, and CAN
Driver e software
XDS3202Ex.
