Extender Ethernet BNC+POE 1 km. KIT LRP-101C

PLANET LRP-101C-KIT ETHERNET TRASM+RICEV
1-Port Long Reach PoE over coax Extender Kit (LRP-101CH + LRP-101CE)
PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Convenient PoE over Coaxial Extender in Harsh Environment
The LRP-101C-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distance up to 1,000m (3,280ft.) over coaxial cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101C-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.
Composition of Long Reach PoE over Coaxial Extender Kit

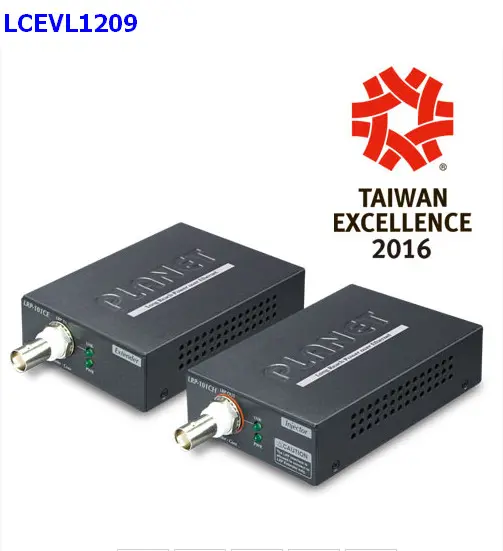

The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

¦ LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector
¦ LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

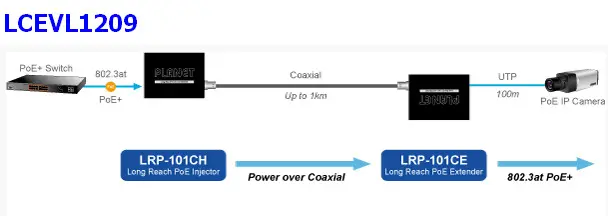

The LRP-101CH transmits data and power over coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.
