Antenna ZB/BT/LTE/5G/WiFi 6,5dBi 12491

DELOCK N-FEM - LoRa - GFK- OUTDOOR
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specifiche • Connector: N jack
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 2.0 - 6.5 dBi
• Impedance: 50 Ohm
• Transmitting power: max. 100 W
• VSWR: 2.0
• Operating temperature: -40 °C ~ 70 °C
• Cable category: coaxial
• Cable type: RG-174
• Cable length: ca. 30 cm
• Cable diameter: ca. 2.7 mm
• Cable colour: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Body: GFK, UV protected

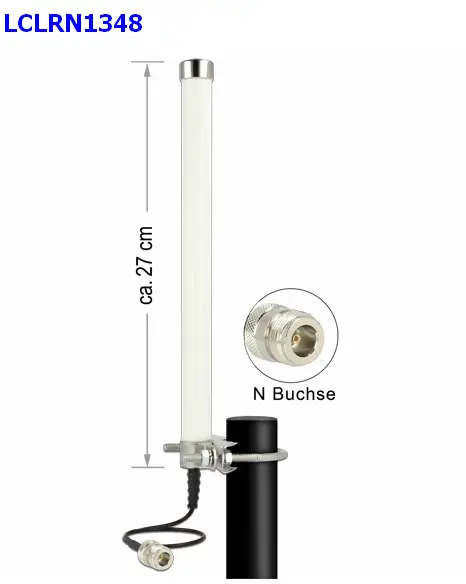

• Length: ca. 27.0 cm
• Diameter: ca. 2.2 cm
• Diameter N jack: ca. 1.66 cm
