cod. LCEVL1236

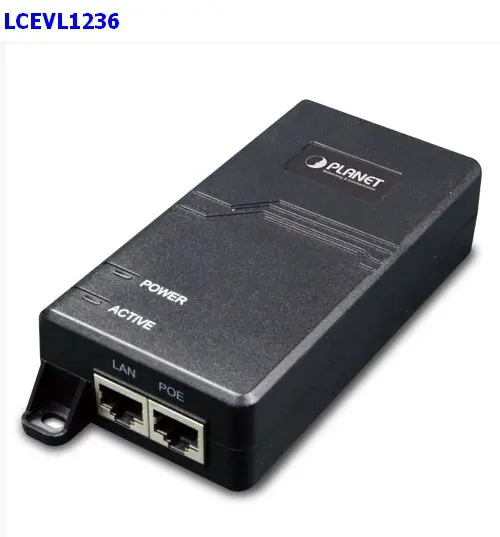

100-240ac=>ultraPOE 60W-802.3af/at/ultra PLANET POE-172 Ultra Power over Ethernet Injector provides a maximum of 60-watt power and high-speed Ethernet data connection anywhere in your network infrastructure. PLANET single port Ultra Power over Ethernet solution contains the following products:
¦ POE-172: 60-watt Ultra Power over Ethernet Injector ¦ POE-171S: 12V/19V/24V DC Power over Ethernet Splitter
Quick and Easy Gigabit Ultra Power PoE Network Deployment The POE-172 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:
¦ PTZ Speed Dome ¦ AIO (All-in-One) touch PC ¦ Remote digital signage display ¦ Other network devices that need higher power to work normally

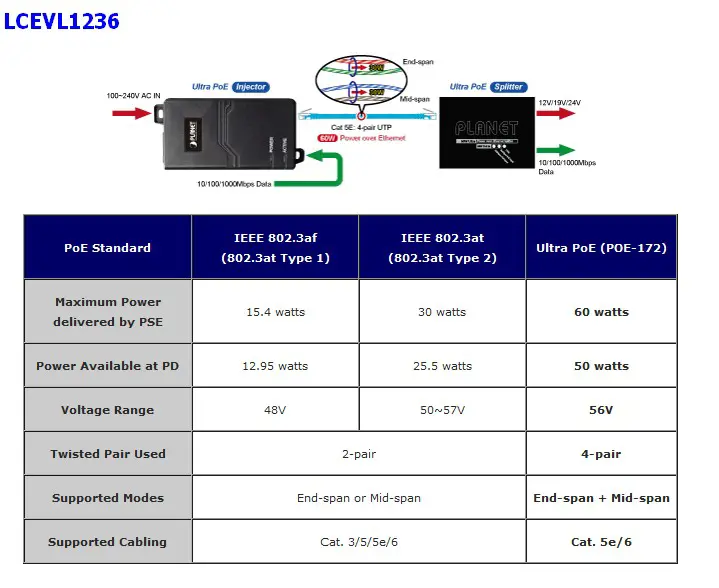

The POE-172 delivers the Ethernet digital data with 56V DC power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter, the POE-171S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters. 60 watts of Power over 4-pair UTP
The POE-172 and POE-171S Ultra PoE solutions use the same cabling standard such as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
