cod. SDAVS1040

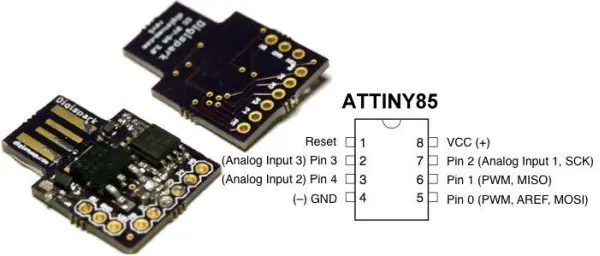

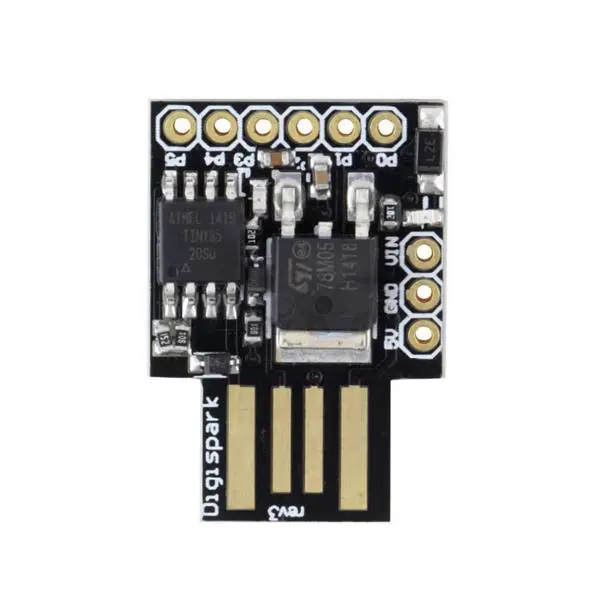

USB- 6x I/O - I2C - SPI - PWM -ADC The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.
Specs • Support for the Arduino IDE 1.0+ (OSX/Win/Linux) • Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection) • On-board 500ma 5V Regulator • Built-in USB • 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB) • 8k Flash Memory (about 6k after bootloader) • I2C and SPI • PWM on 3 pins (more possible with Software PWM) • ADC on 4 pins • Power LED and Test/Status LED
